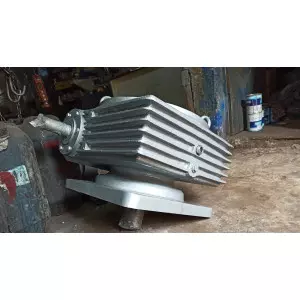

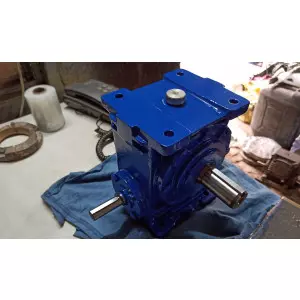

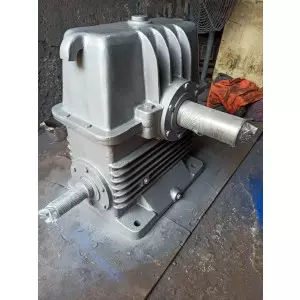

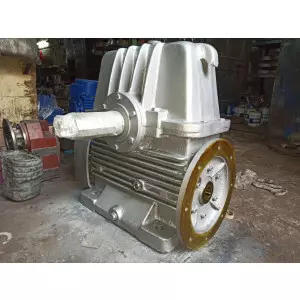

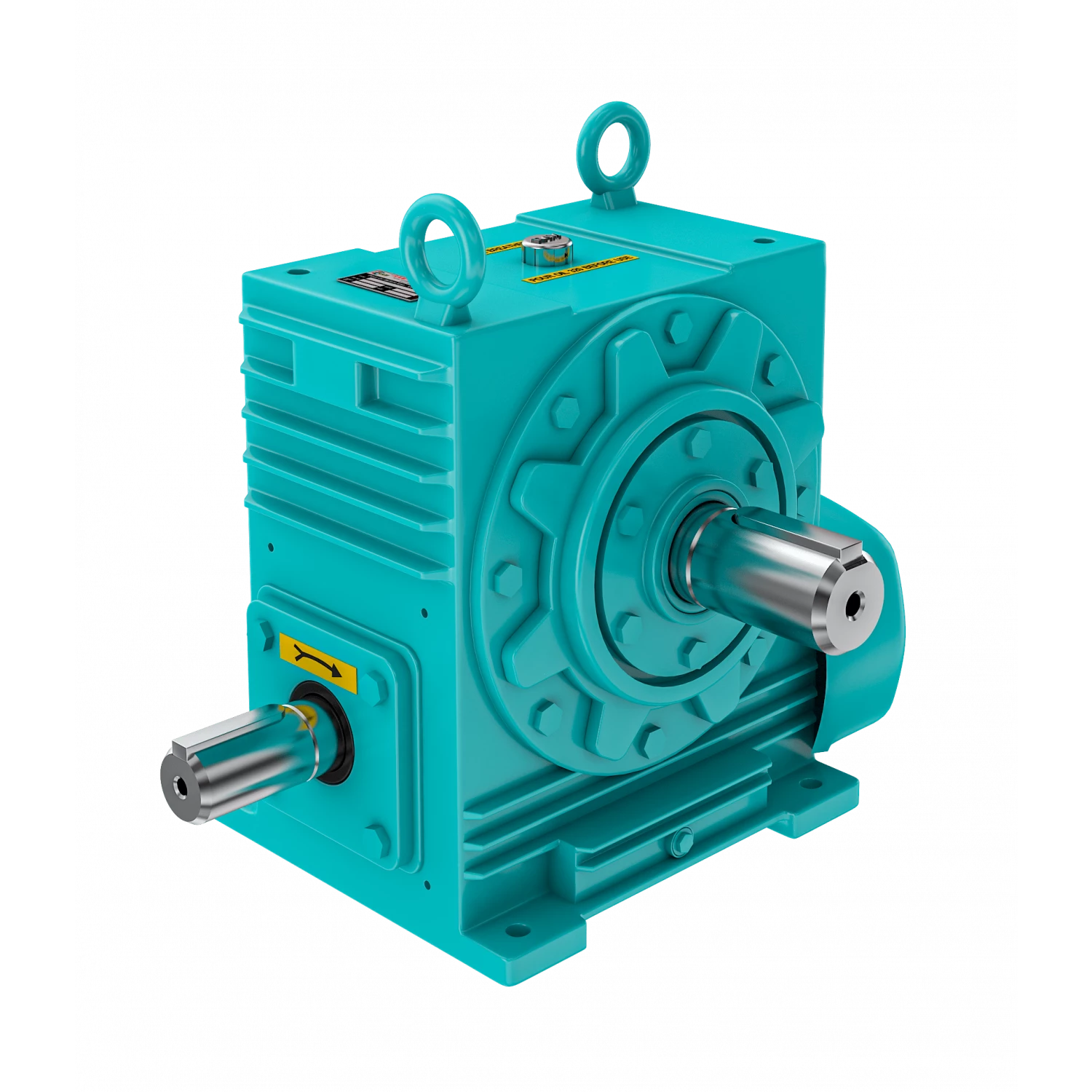

Worm Gearbox
Worm Gearbox Details
The Worm Gearbox is a type of gearbox that uses a worm gear (a screw-like gear) to mesh with a worm wheel (a gear similar to a regular gear but with teeth designed to mesh with the worm). This gearbox design is unique because of its high reduction ratio and compact nature, making it ideal for applications where a large amount of torque needs to be transmitted at low speeds.
WORM and WORM WHEELS are manufactured to the limits of accuracy of WORMS, integral with their Shaft manufactured from high quality case hardening steel. Worm threads are accurately generated and super finished on the imported worm grinder. Bearing journals and shaft extensions are ground to fine limits, whilst oil seal tracks are ground and super finished
Specifications : (Some Salient Product Features of these units are:)
- Ratios : Single reduction 5:1 to 70:1, Double reduction 25:1 to 4900:1
- Models : 1.75”RU to 8” RU. Either FMU Design up to 17”.
- Mounting position: Under driver, Over driven, Vertical, horizontal
- Tail and direct drive mounting configuration.
- Lubrication: Oil splash type lubrication.
- Housing: Close grain cast iron case construction.
Product Features :
- Input options: Chain, Coupling, and Belt pulley.
- Output options: Standard hollow shaft.
- Accessories: Backstop, Torque arm and Motor mounting.
Applications and Industries :
- Cement Industry
- Crushing Industry
- Plastic and Paper Industry
- Material Handling
- Conveyors
- Coal mill
- Rice mill
- Mixers
- Special purpose machines
- Road construction
- Mining and crushing
- Aggregate quarrying
- Textile machines
